Course Content#

Inter-process communication is complex [independent memory space], and the switching cost is high [temporal locality], so threads were invented.

Threads#

A branch of a process [pthread], essentially a lightweight process.

• Communication is convenient because multiple threads within a process share memory.
• Switching cost is low because memory is shared, and there is no need to swap caches when switching threads.

pthread_create#

Create a new thread.

• man pthread_create
• Prototype
  •
  • thread: thread id [Note: not a numeric type, cannot be directly compared with ==, see pthread_equal]
  • attr: attributes
  • arg is the parameter for start_routine.
• Description
  •
  • Start a new thread and execute the start_route function.
    • The start_route function can only accept one arg parameter [multiple parameters can be encapsulated in a structure].
  • There are 4 ways for a thread to terminate [as a tool, the method of death is very important].
    • ① Suicide: call pthread_exit by itself.
      • Threads in the same process can use pthread_join to receive its death status [similar to wait].
    • ② Normal death: return from the start_routine function.
      • Equivalent to the pthread_exit method.
    • ③ Homicide: pthread_cancel.
    • ④ Mutual destruction: a thread in the process calls exit, or the main thread returns from the main function.
      • [PS] If a thread causes a memory crash, it is very likely to also produce a mutual destruction effect, meaning all threads in the process die.
  • attr can be NULL, corresponding to default attributes.
  • After a successful call, the thread id will be saved in the thread variable, which can be used later [similar to a file descriptor].
• Return value
  •
  • 0 for success; otherwise, failure.

——3 Methods to Terminate Threads——#

pthread_exit#

Thread suicide.

• man pthread_exit
•
• ❗ Thread suicide, passing retval to the joining thread [threads are joinable by default].
• Execute the functions registered with pthread_cleanup_push, then release thread-specific data.
  • Shared resources in the process will not be released [because there are sibling threads].
  • Functions registered with atexit will not be called [these belong to the process].
• After the last thread ends, the process ends with exit(0), releasing shared resources and executing functions registered with atexit.
• 【Note】 The relationship between threads and processes.

pthread_cancel#

Send a cancellation request to a thread [homicide].

• man pthread_cancel
•
• The possibility and timing of thread cancellation depend on two attributes: state, type.
• state
  • Cancelable [default].
  • Uncancelable: cancellation commands received will be queued.
• type
  • Deferred [default]: waits for the thread's next call.
  • Asynchronous: immediate, but the system cannot guarantee it.

exit [Process Related]#

Terminate a normal process.

• man exit
•
• The value passed to the parent process is: status & 0377.
  • Note: 0377 is octal, corresponding to eight 1s in binary, which means only the lower 8 bits of status are retained.
• Functions registered with atexit and on_exit will be called in the reverse order of registration.
  • Can be nested: registered functions can also register more functions, which will be placed at the front of the call list.
  • If a registered function does not return, for example, if it calls _exit or uses a signal to terminate, the remaining functions will not be called, and exit-related processing will be prohibited.
  • Functions registered multiple times will be called multiple times.
• ⭐ After exit, all standard IO streams will be flushed and closed.

——Monitoring Thread Status Related——#

pthread_join#

Wait for a thread to terminate.

• man pthread_join
•
• Can be compared to the wait function in processes.
• retval receives the thread exit status.
  • If the thread is a suicide, it copies the retval value from pthread_exit.
  • If the thread is a homicide, it is assigned the value PTHREAD_CANCELED.
• [Consider] Here, retval is a double pointer, that is, a pointer to a pointer. Why?
  • Surface reason: the retval in pthread_exit is a pointer, so by convention, a double pointer is used here [similarly, if an int is received, int * would be used].
  • Further reason: to allow modification of the passed pointer.
  • A blog also mentioned this: Discussing why the second parameter of pthread_join() is a double pointer——CSDN.

pthread_detach#

Detach a thread.

• man pthread_detach
•
• Once a thread is detached, the system will automatically reclaim its resources upon termination, without requiring other threads to block and wait for it to terminate.
• Generally used with pthread_self to detach itself.
  • pthread_self: obtain the id of the calling thread [itself].
• Reference Detailed Explanation of pthread_join() and pthread_detach()——CSDN.

——Additional——#

pthread_yield#

Yield the processor [processor].

• man pthread_yield
•
• [Similar to the effect of sleep].
• This method is only used in certain systems; a more standard usage is: sched_yield.
  • For cooperative systems, calling this function actively yields the CPU.
  • For preemptive systems, the kernel will schedule, and this function has little significance; sleep can be used directly.
  • Cooperative vs. preemptive, see 4 Advanced Process Management——Scheduler Classification.

pthread_equal#

Compare the ids of two threads [cannot be directly compared with ==].

• man pthread_equal
•
• If equal, returns a non-zero value.

Thread Pool#

Let a bunch of threads stay in the pool, ready to work at any time.

Basic components👇

① Task Queue: stores tasks that need to be processed.

• [Circular queue is better].
• Basic operations: init, push, pop.

② Multiple threads: always ready, reducing the time for creation and destruction.

③ Thread function: do_work().

• while(1): wait for tasks to be added.
  • 1. Task queue pop: pop a task for the thread to execute.
  • 2. do_work(): execute the task in the CPU.

❗ Note: Both push and pop need to be locked to prevent data races [thirsty threads].

• See code demonstration for details.

Kernel Threads, User Threads#

Who creates threads? Thread model.

• The main difference between the two lies in scheduling: kernel threads are scheduled by the kernel; user threads are scheduled by user processes.
• Advantages of kernel threads:
  • ① Each kernel thread has its own time slice. Therefore, a process with multiple threads will have more processor time; while a user process will not gain more processor time just because it has several user threads.
  • ② If a kernel thread is blocked, the remaining threads in the process can continue to run. If a user thread is blocked, the entire process will be blocked.
    • PS: If a kernel thread sends a sleep signal to its own process, that thread can still continue to run.
• Advantages of user threads:
  • ① Low switching cost. Does not involve transitioning from user mode to kernel mode.
  • ② Scheduling algorithms are completely controlled by the process. User processes can use their own scheduling algorithms, so they have better autonomy; while the scheduling of kernel threads is a black box for users.
• Therefore, a hybrid thread design can combine the advantages of both kernel and user threads.

Code Demonstration#

Simple Use of Multithreading#

•
•
• Focus: usage of the pthread_create function.
• If there is no usleep after creating the thread or if the usleep time is too short, the following may occur:
  • The main thread returns, causing all child threads to mutually destroy.
  • At this time, some outputs may appear twice, such as ①, ② [③ is normal output].
  •
  • Speculation: the issue with the output buffer, where the buffer content is output again when the thread suddenly ends [the buffer has not been updated].
  • [PS] Using fflush does not solve the problem, possibly because the thread ends suddenly.
• Note: All threads can operate on the value at the same address.

Thread Pool#

thread_pool.h

•
• Definition of the task queue and basic operations.

thread_pool.c

•
•
• Note: Locking and unlocking, sending signals; checking if the queue is full/empty; checking if the pointer has reached the end of the queue.

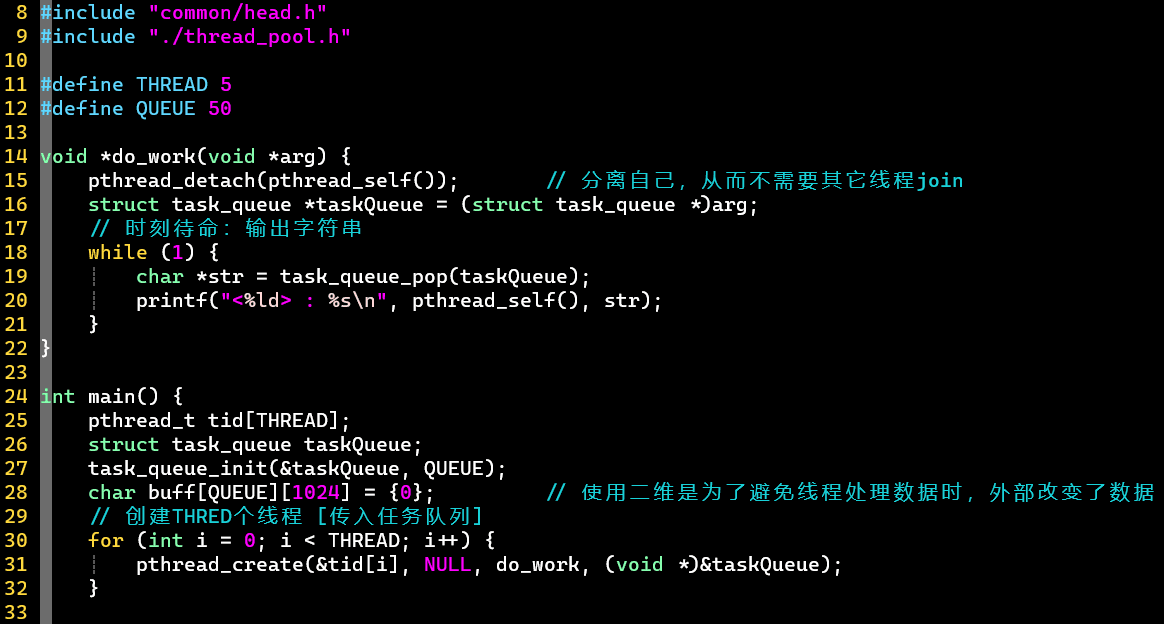

1.test.c

•
•
• The buffer for storing data is a two-dimensional array, which can avoid the main thread changing the data through the address while the thread reads the data.
• The clever use of usleep: to avoid excessive CPU consumption from the while(1) loop.
• pthread_detach is generally used with pthread_self.
• fgets: read from a file into the buffer.
  • man fgets
  •
  •
  • Read by line.
• Output effect.
  •
  • Basic output: push [task queue output]; pop [task queue output] + do_work [thread output].

Additional Knowledge Points#

• When compiling files that include thread-related functions, be sure to use -lpthread.

Tips#

• A created process also represents a main thread.
• Multithreading is still executed sequentially in a single CPU, so it is not recommended to use multithreading on a single-core CPU.
  • Reference How do single-core and multi-core CPUs work for multithreaded programs——cnblogs.
