Course Content#

IPC - Inter-Process Communication

——Shared Memory——#

• The parent agrees on the shared data location before having children.
• Related interface: shm*

shmget#

Allocate a System V type shared memory segment [Segmented Memory]

[PS] The communication method of System V is still in use; its startup method has been abandoned.

• man shmget
• Prototype
  •
  • Return value type: int
  • Parameter types: key_t, size_t, int
  • ipc → Inter-Process Communication
• Description
  •
  • The key passed in and the id returned are linked together.
  • The size of the new shared memory segment corresponds to the integer page size [rounded up].
  • Creating shared memory requires a flag: IPC_CREAT.
  •
  • If IPC_CREAT is not present, it will check the user's access permissions for the segment corresponding to the key.
  •
  • Note: At least 9 bits need to be specified for permissions, such as 0600, the leading 0 cannot be omitted.
• Return value
  •
  • On success, returns a valid memory identifier [id]; on error, returns -1 and sets errno.
• After obtaining the id through the key, how to find the corresponding address? shmat 👇

shmat, shmdt#

Shared memory operations [attach, attach; detach, detach]

• man shmat
• Prototype
  •
  • Note that the return value of shmat is: void *
• Description
  • shmat
    •
    • Attaches the shared memory segment specified by the id to the calling process's own address space.
      • Each process believes it is using a separate contiguous memory block [Virtual Memory Technology].
        •
        • Refer to Wikipedia
    • shmaddr specifies the attachment address:
      • NULL: The system automatically attaches [commonly used].
      • Otherwise, attaches to the automatically rounded down address [defined in shmflg as SHM_RND] or manually ensures page-aligned addresses.
    •
    • A successful call will update the shared memory structure shmid_ds.
      • shm_nattach: Number of attachments. The real physical space corresponding to the shared memory may be attached by multiple processes.
  • shmdt
    •
    • This is the opposite operation of shmat.
    • The operation must be on the currently attached address.
• Return value
  •
  • On success, shmat returns the address, shmdt returns 0.
  • On error, returns -1 and sets errno.
• The id is unique throughout the system, and the same id must correspond to the same physical memory.
  • [Note] The same id returns different addresses through shmat because it appears as independent address spaces in different processes [Virtual Memory concept].
• By the way, shmget obtains the id through the key, shmat obtains the memory address through the id, but how is the [key] obtained? 👇

ftok#

Converts a pathname and a project identifier into a System V IPC key.

• man ftok
• Prototype
  •
  • Requires a pathname and an int type variable to complete the conversion.
• Description
  •
  • The file must exist and be accessible.
  • proj_id must have at least 8 valid bits and cannot be 0.
  • The same filename and proj_id correspond to the same return value.
    • Therefore, fixed input parameters will return a fixed key.

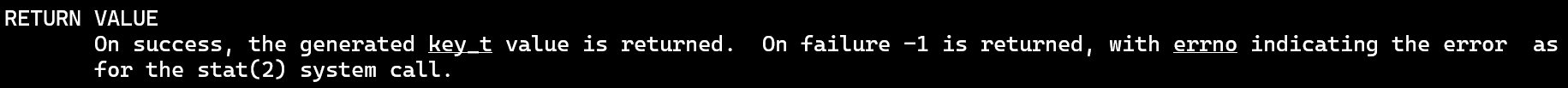

• Return value
  •
  • On success, returns the key; on failure, returns -1 and sets errno.

shmctl#

Control of shared memory.

• man shmctl
• Prototype
  •
  • cmd: command, int type. It can be predicted to be some uppercase macro definitions.
• Description
  •
  • You can see the detailed information of the shmid_ds structure.
  •
  • Some commands:
    • IPC_STAT: Copies the shmid_ds structure information to buf [requires read permission].
    • IPC_SET: Modifies the shmid_id structure.
    • IPC_RMID: Marks the segment to be destroyed.
      • The segment will only be truly destroyed when it is not attached.
      • No buf variable is needed, just set it to NULL.
      • [PS] Must check if it is really destroyed, otherwise there may be remnants [can be checked through return value].
    • IPC_INFO [Linux specific, avoid using for compatibility].
• Return value
  •
  • Generally: 0, success [except INFO, STAT]; -1, error.

——Thread Related——#

From the thread library [pthread]

Mutex, condition variable

[PS] Multi-threading, high concurrency, when using shared memory, mutual exclusion must be considered.

pthread_mutex_*#

【Mutex】 operations mutex

• man pthread_mutex_init, etc.
•
• lock: When using lock, it will check if it is already locked; if locked, it will suspend until unlocked [possible blocking point].
• init: Dynamic initialization method, requires the use of attribute variable.
• Attribute interface: pthread_mutexattr_*
  • init: Initialization
    •
    • In the initialization function, attr is an output parameter, return value is 0.
  • setpshared: Sets inter-process sharing.
    •
    • pshared variable is of int type, which is actually a flag.
    •
    • 0: Process private; 1: Process shared → corresponding to macros PTHREAD_PROCESS_PRIVATE, PTHREAD_PROCESS_SHARED.
• Basic operations of mutex: Create attribute variable 👉 Initialize mutex 👉 Lock/Unlock operations, see code demonstration——Shared Memory [Mutex].

pthread_cond_*#

【Condition Variable】 Control Conditions

• man pthread_cond_init, etc.
•
• Structure is very similar to mutex.
•
• A condition variable is a synchronization device that allows threads to suspend and release processor resources until a certain condition is met.
• Basic operations: Send condition signal, wait for condition signal.
• ⭐ Must be associated with a mutex to avoid race conditions: It is possible that one thread is ready to wait for a condition before another thread has already sent the signal, leading to missed messages.
• init: Initialization can use attribute variables [but in Linux thread implementation, attribute variables are actually ignored].
•
• signal: Only wakes up 1 thread that is waiting; if there are no waiting threads, nothing happens.
• broadcast: Wakes up all waiting threads.
• wait
  • ① Unlocks mutex and waits for the condition variable to activate [true atomic operation].
  • ② Before wait returns [before the thread restarts / after receiving the signal], it will relock the mutex.
  • [PS]
    • When calling wait, the mutex must be in a locked state.
    • While waiting, it does not consume CPU.
• ❗ The segment in the yellow box in the image
  • Ensures that during the wait unlocks the mutex -> prepares to wait [atomic operation], other threads will not send signals.
  • ❓ At this time, the mutex is already unlocked, so this atomic operation may still need to use something similar to a mutex.
  • ❓ It seems that wait can prepare to wait first -> then unlock the mutex, which is normal logic, but unlocking first and then performing an atomic operation, what is the significance of unlocking first?

Code Demonstration#

Shared Memory [Without Locking]#

5 processes demonstrate the cumulative sum from 1 to 10000.

•
•
• ❗ Here, the child processes directly use the shared memory address share_memory inherited from the parent process [virtual address].
  • It can be seen that the same virtual address in different processes points to the same shared memory [physical memory].
  • If the child processes obtain the shared address through the inherited shmat and id, it will correspond to a new virtual address in the child process, but still point to the same shared memory; the originally inherited shared address share_memory can still be used.
• ❗ How to achieve true destruction after using shared memory.
  • Use shmdt to detach the shared memory attached in all processes [experimentally, this step can be omitted because the process will automatically detach upon termination].
  • Then use shmctl with IPC_RMID to destroy the shared memory segment [remove shmid].
  • [PS]
    • Each process counts as one attachment, and the shared memory segment will only be truly destroyed when the attachment count is 0.
    • You can also remove the IPC_EXCL flag from shmget to not check if it already exists, but this is not a fundamental solution.
• If the above shmctl operation is not performed
  • The first execution is fine, indicating that the shared memory segment was successfully created.
  • But the second execution shows that the file already exists.
    •
    • This indicates that the shared memory was not automatically destroyed after the last execution, and the second execution still uses the same key to create shared memory [each time the same key corresponds to different shmid].
  • [Exploration Process]
    • ipcs: Displays IPC-related resource information.
      •
      • You can see the undestroyed shared memory, as well as message queues and semaphores.
      • And their keys, ids, permissions perms.
      • You can also see that their nattch is 0, indicating that there are no attachments.
    • ipcrm: Deletes IPC resources.
      •
      • The usage of parameters can be viewed through --help.
      • Resources can be removed by key or id.
      • Manually delete resources and then run the program: ipcs | grep [owner] | awk '{print $2}' | xargs ipcrm -m && ./a.out.
• ❗ The essence of the error as follows [personal understanding]
  •
  • The correct cumulative sum from 1 to 10000 should be 50005000.
  • Multiple processes simultaneously operating on shared memory [or] a read/write operation of one process is not fully completed before another process starts a new operation. For example:
    • One process just increments now++, writes to memory, and at this moment another process gets the new now and increments it again, adding the now incremented twice to the old sum.
    • This means that the operations now++ and sum accumulation are not atomic operations.
  • However, generally, the CPU speed is too fast, so it is very likely that the operations are atomic [now++ and sum accumulation writing to memory], with a very small probability of error.
  • Multi-core systems are more likely to encounter calculation errors because a single processor can only run one process at a time.
• [PS]
  • The first 0 in the permission setting 0600 indicates the use of octal.
  • usleep(100): Makes the process sleep for 100ms, allowing one process to compute once and block, letting other processes continue, purely to reflect division of labor.
  • Add header files according to the man manual.

Shared Memory [Mutex]#

A more efficient lock in memory, similar to file locks [refer to example] concept.

•
•
• Create a mutex: Create attribute variable 👉 Initialize mutex.
• Two conditions for using mutex between processes:
  • ① The mutex variable is placed in shared memory, shared with each process, thus controlling each process.
  • ② When creating the mutex in the parent process, the created attribute variable is set for process sharing [by default, it only works between threads].
    • However, some kernels may not require this operation, but for compatibility, it is recommended to set it ❗.
• [PS]
  • After calculating the cumulative sum, remember to unlock.
  • The slowest operation in the system is IO operations, so unlocking before printf allows the mutex to be released earlier, which is more efficient.
  • fflush can manually flush the buffer to avoid output confusion.

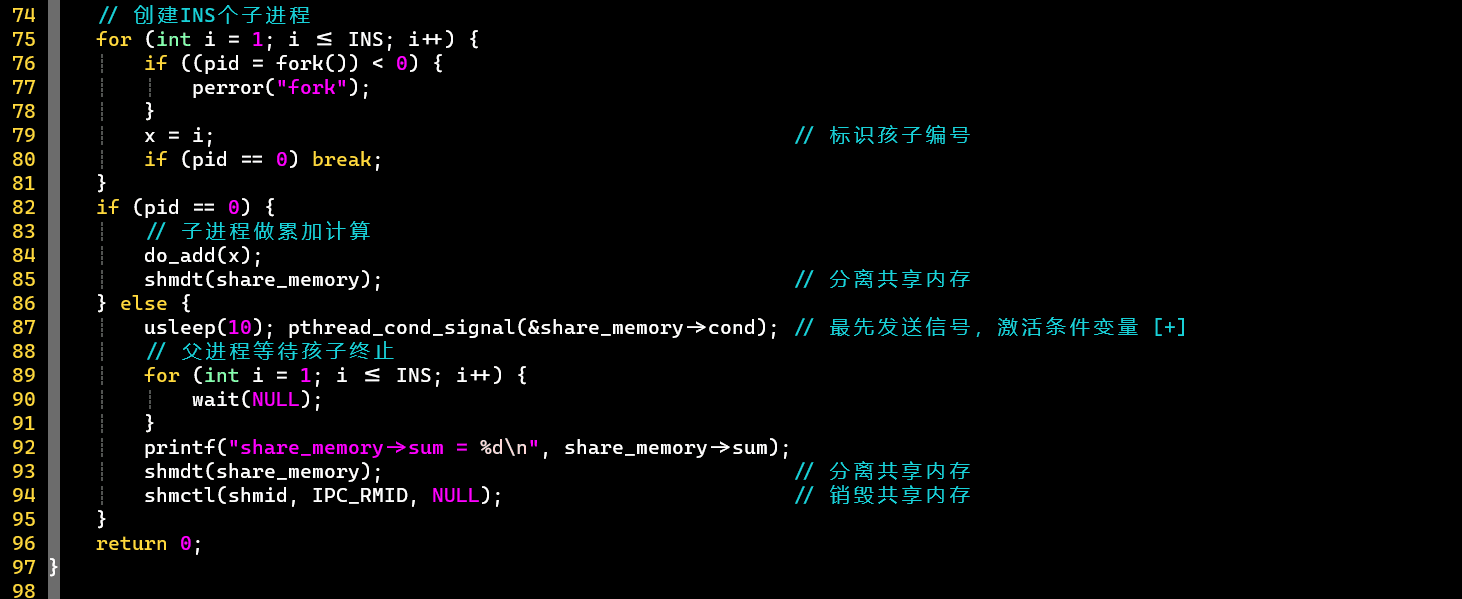

Shared Memory [Condition Variable]#

Each process calculates 100 times in turn.

•
•
•
• Initialization of cond condition variable is similar to mutex.
  • In the implementation of Linux threads, attribute variables are actually not needed; same as mutex.
• For single-core machines, before sending a condition signal, you need to usleep for a while to ensure that the child process is ready to wait for the signal. Otherwise,
  • For the parent process, it executes first, sends the signal, and if the child process has not yet had its turn to run, it will miss the signal.
  • For child processes, it is similar; before sending the signal, let other child processes run to the wait state first [in practice, usleep cannot guarantee this].
• ❗ Note
  • There must be a locked mutex before wait.
  • Remember to unlock + send signal operation after each operation [after 100 calculations / completion of 10000 accumulation].
  • There are two sequences for sending signal operations:
    • ① Lock -> Send signal -> Unlock
      • Disadvantage: The waiting thread is awakened from the kernel [→ user mode], but because there is no mutex available to lock, unfortunately, it returns [from user mode] to kernel space until there is a mutex available to lock.
        • Two context switches [between kernel mode and user mode] waste performance.
      • Advantage:
        • Ensures thread priority [❓].
        • In the Linux thread implementation, there are cond_wait queues and mutex_lock queues, so it will not return to user mode, thus avoiding performance loss.
    • ② Lock -> Unlock -> Send signal [this article adopts].
      • Advantage: Ensures that threads in the cond_wait queue have a mutex available to lock.
      • Disadvantage: A low-priority thread that grabs the mutex may execute first.
    • Reference: Condition Variable pthread_cond_signal, pthread_cond_wait——CSDN.
• Implementation Effect
  •
  • Each process calculates 100 times in turn.
  • [PS] Even usleep cannot completely avoid message omission; a variable in shared memory can be used to record the signal sent; additionally, there may also be cases of false wake-ups.
    • Comprehensive solutions can refer to False Wake-up && Message Omission——CSDN.

if (!count) {                   // -> Message omission [not yet in wait state]
  pthread_mutex_lock(&lock);
  while (condition_is_false) {  // -> False wake-up [multiple awakenings simultaneously]
    pthread_cond_wait(&cond, &lock);
  }
  //...
  pthread_mutex_unlock(&lock);
}

Simple Chat Room#

• chat.h
  •
  • Username + message + standard for using shared memory.
• 1.server.c
  •
  • The logic is basically similar to the previous code demonstration; pay attention to the subsequent clearing operations, mainly for data safety.
• 2.client.c
  •
  •
  • Focus on the role of the while loop on line 41: Prevents the client from grabbing the lock, causing the server to not receive the signal.
    • There is also a hidden danger: A client may fail to grab the lock and become blocked.
  • [Note] When compiling 2.client.c with gcc, be sure to add -lpthread; otherwise, there will be no error, but at runtime, the server will not receive the signal.
• Effect Demonstration
  •
  • Left is the server, right are two clients.

Additional Knowledge Points#

• Related processes: between parent and child, between siblings.

Points to Consider#

• Processes competing to calculate VS. Each process calculating one hundred times, which method is more efficient?
  • The latter is more efficient; thinking to the extreme, one process calculating everything is more efficient.
  • This involves the throughput of the CPU; this accumulation is CPU-intensive, not IO-intensive.
    • Refer to 4 Advanced Process Management——Processor-Constrained and IO-Constrained Processes.
