Course Content#

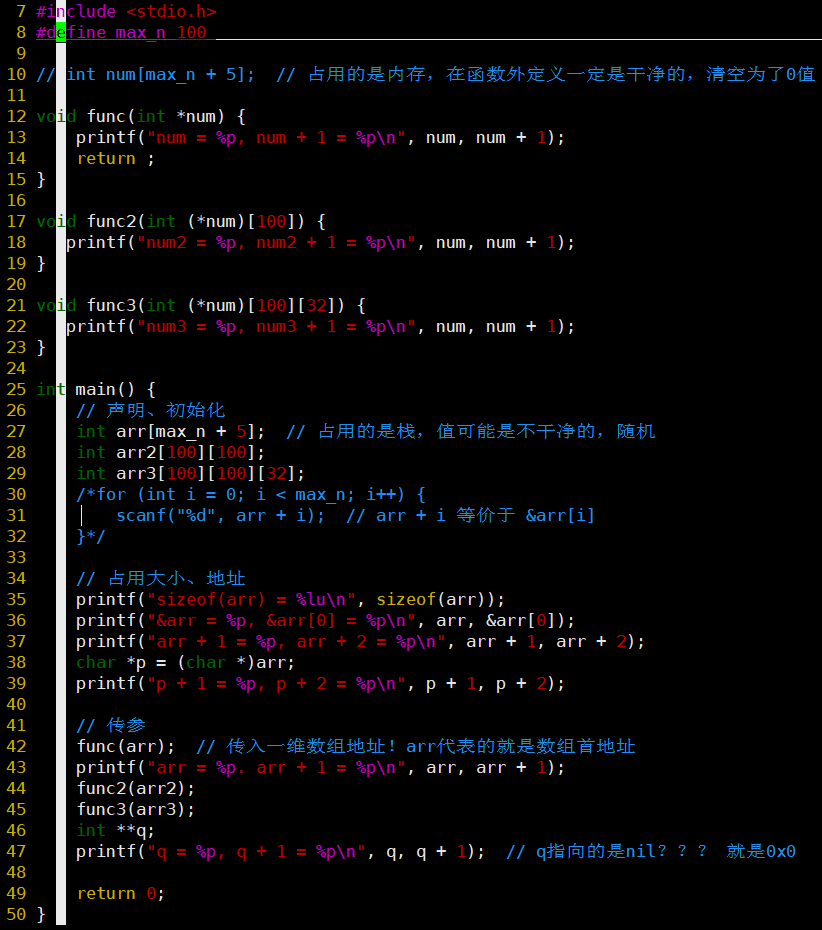

Definition and Initialization of Arrays#

• Definition: A sequential collection of the same type of elements of a fixed size
• Initialization
  • int a[100] = {2, 3}; // a[0] = 2, a[1] = 3
  • int a[100] = {0}; // Array clearing operation: initializes every element to 0
    • Actually only defines the 0th element as 0, but causes other elements to be automatically initialized to 0
• Others
  • Starts from index 0
  • Size of array space: total size of all variables
  • Storage space is contiguous
    • int a[3]

• • The arrays defined above are all static arrays
    • Not recommended operation: int n; scanf("%d", &n); int arr(n);
  • Index-value mapping
    • Given the index, the time efficiency of accessing the value is O(1)

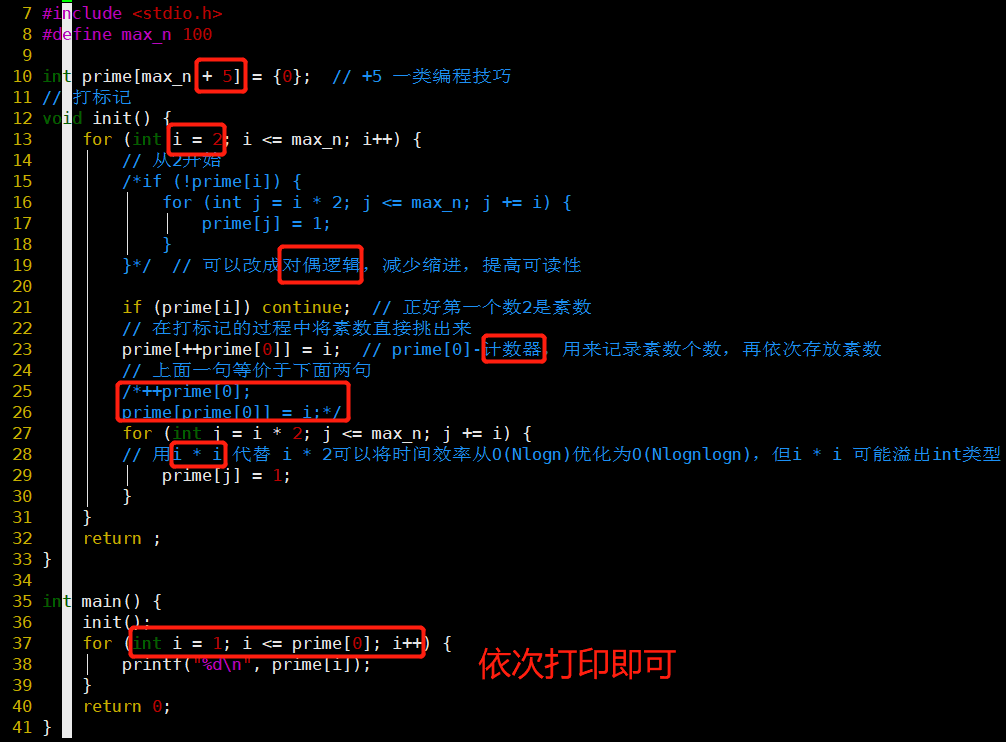

Prime Sieve#

Core Idea: Use prime numbers to eliminate all composite numbers

• Learn as an algorithm framework, with many variations
• Prime numbers: only have 1 and itself as factors
  • 1 is neither a prime nor a composite number
  • 2 is the smallest prime number
  • Prime numbers must be odd (except for 2), but odd numbers are not necessarily prime
• Utilizing array structure. An array can represent three types of information:
  • Index
  • Value mapped by the index
  • Sign of the value
• Algorithm measurement standards and performance
  • Space complexity: O(N), an array of size N is created for N numbers
  • Time complexity: O(N * logN), O(N * loglogN)--optimized version, approaching O(N)
    • Not O(N) due to duplicate marking
    • The base of the logarithm is not important; base 2 is already small
    • How to calculate: amortization idea, calculating expected value based on time complexity and probability...
• Marking: Prime, 0; Composite, 1
  • Utilizing two states of the array: index → number, value → mark
• Prime sieve extension
  • Find the minimum and maximum prime factors of all numbers within a range
  • For example, for 12: 2, 3

Linear Sieve#

• Start from Euler's 7th problem
  • Find the 10001st prime number
  • Can use enumeration method O(N * sqrt(N)), prime sieve
  • Estimate how large the 10001st prime number will be?
    • Rule: The range of primes ranked within 200,000 will not exceed 20 times their rank
• Thoughts from the prime sieve
  • How many times is 6 marked? 2 times: 2, 3
  • How many times is 30 marked? 3 times: 2, 3, 5
  • If a number N's prime factorization contains m different primes, how many times is N marked? m times
  • Can it be marked only once? 👇
• Linear sieve
  • Both space and time are O(n)
  • Use an integer M to mark composite number N
  • The relationship between M and N satisfies four properties
    1. The smallest prime factor of N is p
    2. N = p * M
    3. ❗ p must be less than or equal to the smallest prime factor in M
       • Similar to the principle of capturing Meng Huo, only mark on the last occasion
    4. Use M * P' (the set of all primes not larger than the smallest prime of M) to mark N1, N2, ...

[i and iii are somewhat equivalent]

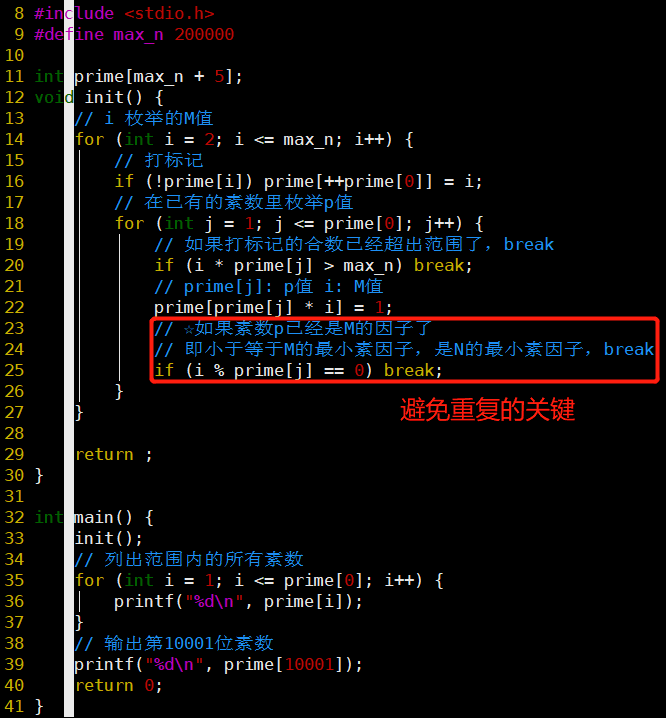

• Code
  •
  • Core idea: N = M (↑ as large as possible) * p (↓ as small as possible)
    • Enumerate M, gradually increase p until p meets the termination condition: property iii
    • Compared to M, p is better controlled!
  • The key to avoiding duplication is property iii
  • Note: Although there are two layers of for loops, the time complexity is O(N) because of the break in the second layer for loop, the entire array is traversed once
  • The difference from optimizing the initial condition of the prime sieve to i * i is? The prime sieve still has duplicate marking situations

Binary Search Method#

• Sequential search → binary search: O(N) → O(logN)

• Key premise: The search sequence must be monotonic

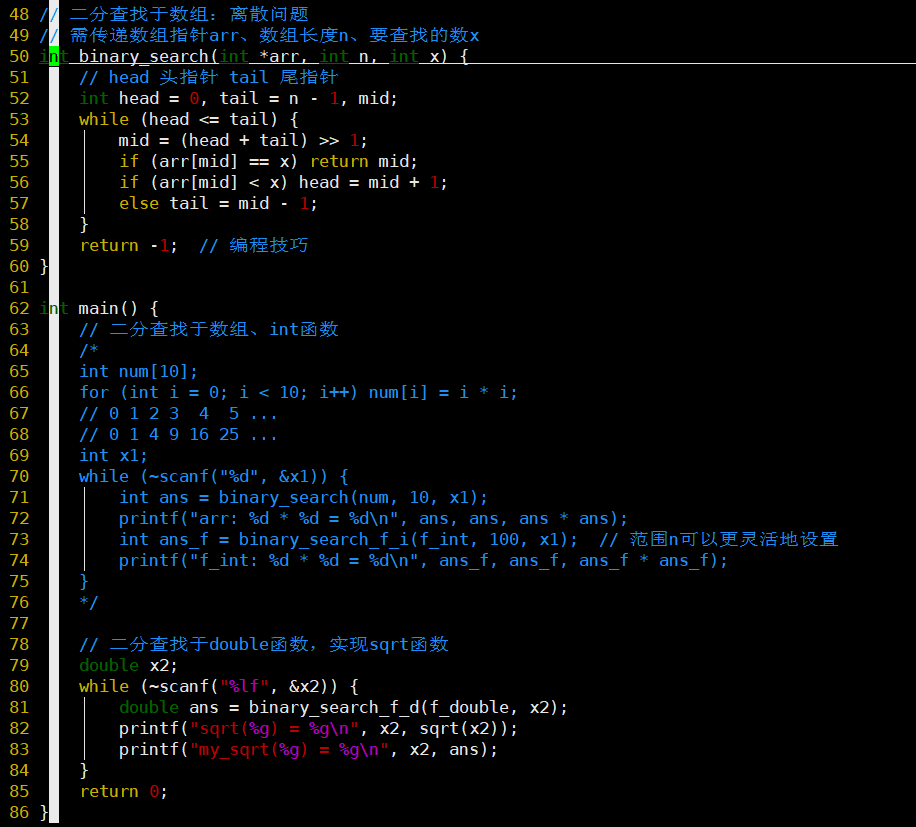

• Code

  •
  •

  • Mainly demonstrates three parts: ① Binary search in an array ② Binary search in a function ③

  • For the implementation part of binary search in a function

    • Should be able to unify binary_search_f_i and binary_search_f_d into one function
    • Focus on later learning, can you identify the return type of the passed function pointer?
    • However, there are differences in the implementation part, so the significance should not be great

  • The commented code in the main function tests the results of binary search in arrays and functions, as follows:

  •

    • Using a function for binary search can be more flexible

  • Double type equality: use the difference less than EPSL to judge

    • Remember to #undef EPSL

  • Details are in the comments

    • Learning order: binary_search 👉 binary_search_f_i 👉 binary_search_f_d

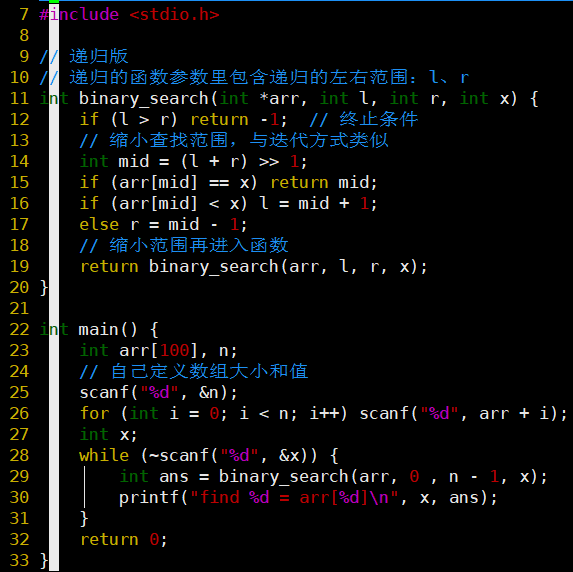

• Recursive Version Code

  •

  • The parameters of the function differ from the iterative method, and the search boundaries need to be determined

Newton Iteration Method#

•

• Purpose: To solve for the value of x when f(x) = 0

• Conditions: The function must be differentiable; convergence

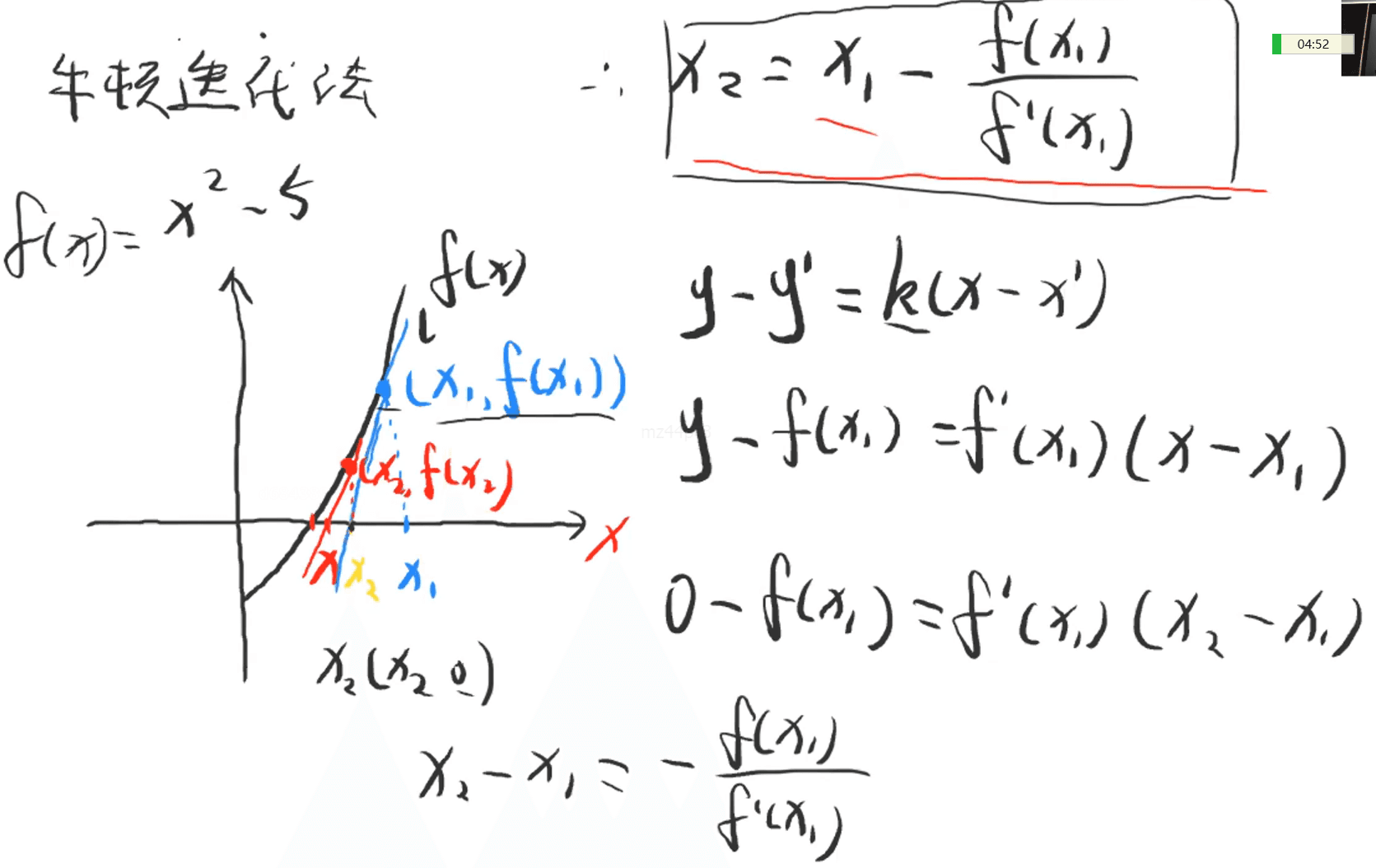

• Iteration Formula: x2 = x1 - f(x1) / f'(x1)

• Core idea: Each iteration brings x2 closer to the required value of x until the absolute value of f(x) is smaller than EPSL

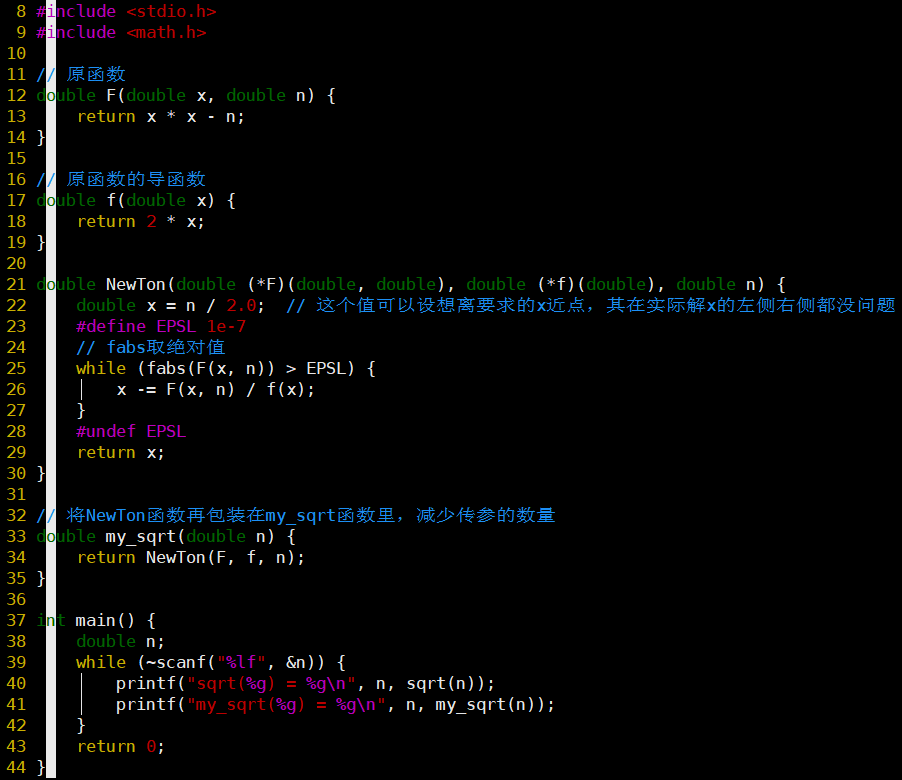

• Code

  •

  • ⭐ Remember to take the absolute value for the loop termination condition!

  • Is x = n / 2.0 this initial value fixed?

    • No
    • This value is an imagined x closest to the solution, which is fine on both sides of the solution
    • However, it cannot be 0, as the derivative would be 0, leading to a division by 0

  • Wrap the Newton function to obtain the my_sqrt function

  • This is not binary search! Binary search requires monotonicity~

Preprocessing Commands#

• Commands starting with #
  • #include <stdio.h> → During preprocessing, the stdio.h file is copied to the current location unchanged
• Macro Definitions

1. Define symbolic constants: constant → symbol.

#define PI 3.1415926
#define MAX_N 1000

• Convenient for batch modification of values

2. Foolish expressions

#define MAX(a, b) (a) > (b) ? (a) : (b)
#define S(a, b) a * b

• Foolish eg. #define S(a, b) a * b
  • S(2 + 3, 4 + 5) → Simple replacement → 2 + 3 * 4 + 5 is equivalent to 2 + (3 * 4) + 5
  • No calculations are done during the replacement!

3. Define code segments (advanced)

#define P(a) { \
    printf("%d\n", a); \
}

• Macros can only accept one line of definition, and a newline requires the use of a backslash '' (continuation character)

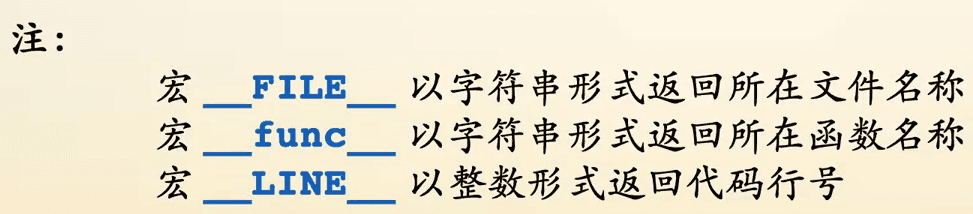

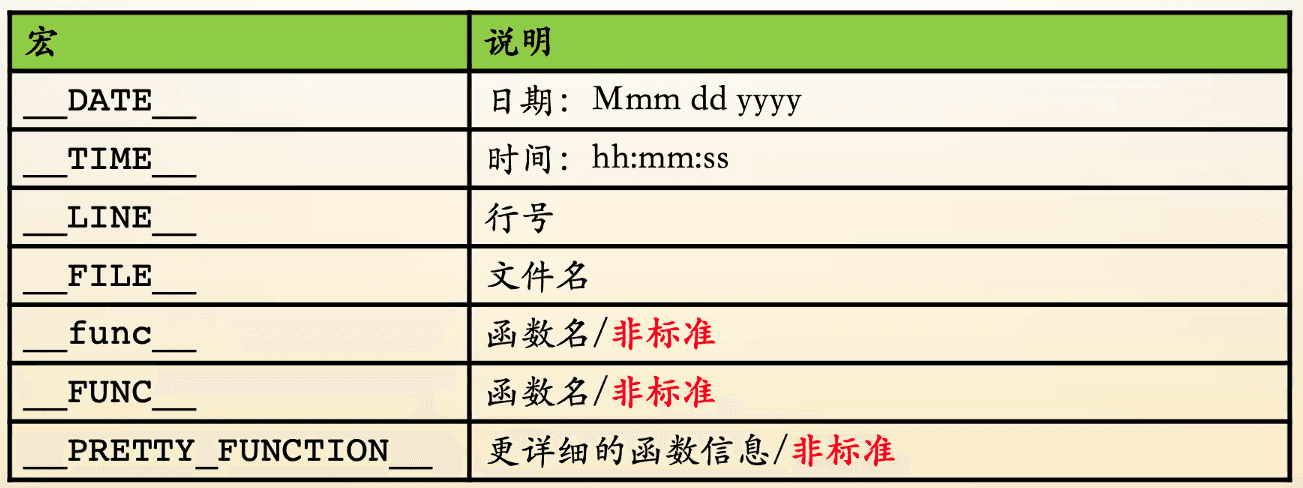

• Predefined macros (system encapsulated)

  •

  • The two ends of the macro are two underscores

  • DATA, TIME: The date and time at pre-compilation, which do not change without preprocessing

    • Can achieve functions similar to fingerprint recognition? Pre-stored relationships?

  • Non-standard macros: Some environments may not define them, and different environments may have different standards, so portability is poor

    • How to handle this? Conditional compilation can be used 👇

• Conditional Compilation

  • #ifdef DEBUG
    • Explanation: Whether the DEBUG macro is defined
    • Note: DEBUG must be a macro, not a variable!
      • Macros take effect after preprocessing, while variables take effect after compilation
  • #ifndef DEBUG Whether not defined
  • #if MAX_N == 5 Whether the macro MAX_N equals 5
    • Can be used to check the user's mobile version in games
  • #elif MAX_N == 4
  • #else
  • Must end with #endif**!!
    • 【Coding Specification】
    • Similar to va_start, va_end

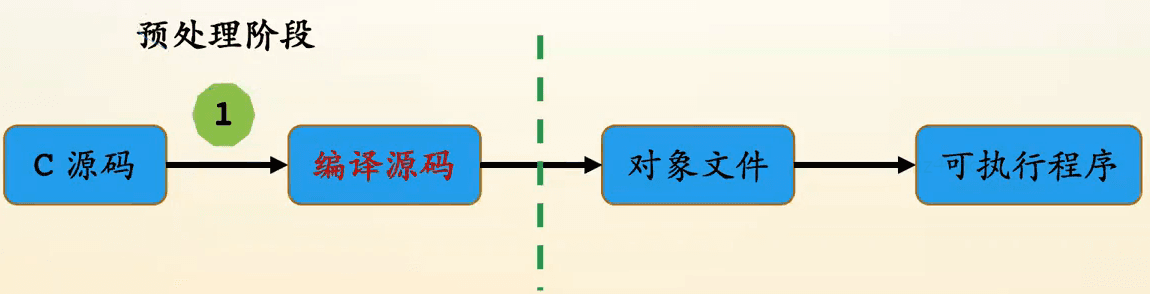

• Simple Compilation Process

  •

  • C Source Code .c

  👇 Preprocessing Stage (Pre-compilation) (gcc -E): Includes header files, macro replacements, and other preprocessing commands, replacing all # commands

  • Compile Source Code .c

  👇 Syntax checking, compilation (gcc –S)

  • Assembly Source Code .s, .asm

  👇 Assembly (gcc -c)

  • Object File .o (under Linux) or .obj (under Windows)

  👇 Linking (gcc)

  • Executable Program a.out (under Linux) or a.exe (under Windows) (binary file)

  PS: Finally, there is a loading process, mainly to establish the mapping relationship between the executable file, virtual address, and physical address

Strings#

• Character Arrays
  • Definition: char str[size];
  • Initialization

char str[] = "hello world";
char str[size] = {'h', 'e', 'l', 'l', 'o'};

• Line1

  • The size in [] can be omitted, and the system will calculate it automatically
  • The system will automatically add a terminator '\0', the size of the character array: 11+1

• Line2

  • Size must be at least 6, considering the terminator '\0' occupies one position
    • Extra positions are filled with '\0'
  • If size is not added, '\0' must be added at the end of the array, as the system will not add it automatically

• '\0'

  • A termination marker
  • Corresponds to 0 at the lower level: false
  • '\0' can serve as a termination condition, such as: for loop reading a string

• Is there a '\0' after the character? No, it is a characteristic of strings

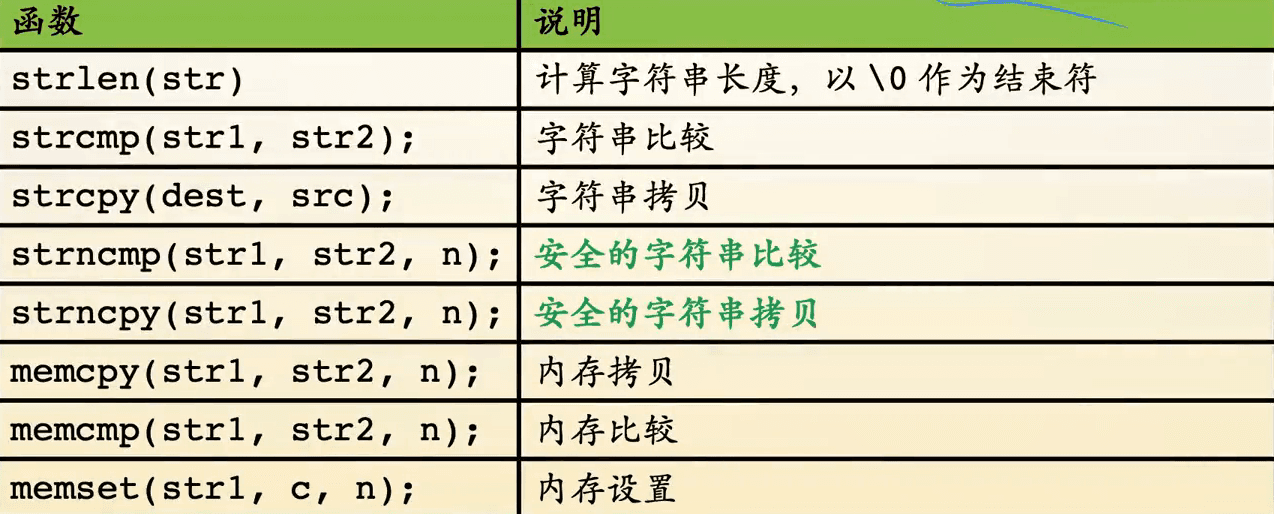

• Related Operations

  •

  • Header File: <string.h>

  • strlen(str)

    • Returns the index of character '\0', length does not include '\0'
    • PS: sizeof() considers the actual memory occupied by the variable, including '\0', measured in bytes

  • strcmp(str1, str2);

    • Compares ASCII values in dictionary order
      • Starts from the first position
    • Return value is the difference (0 if equal)

  • strcpy(dest, src);

  • The end markers for comparison and copying: look for character '\0', what if '\0' is lost? Hence there are

  • Safer comparisons and copies: strncmp, strncpy

    • For cases where '\0' might be accidentally lost
    • Compare and copy at most n bytes

  • Memory Related

    • memset(str, c, n)

    • Not limited to string operations, str corresponds to an address

      • Here is an example of operations on arrays

      • memset(arr, 0, sizeof(arr))

        • Initializes, clears to 0

      • memset(arr, 1, sizeof(arr))

        • This does not set every position to 1, because it operates on each byte, while int occupies 4 bytes
        • 0000...01000...001000....0001...

      • memset(arr, -1, sizeof(arr))

        • It is indeed -1, because -1 in 1 byte is 11111111
•

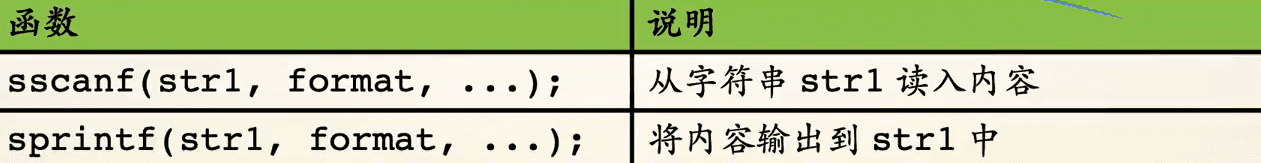

• Header File: <stdio.h>

• The combination of both can perform format concatenation: one for input, one for output

• The str1 in scanf is analogous to terminal input, which is replaced with string input

In-Class Exercises#

Implement a BUG-free MAX macro#

•

• Idea: ① Calculate correct output manually 👉 ② First write the simplest implementation with BUG and have friendly output display 👉 ③ Find and solve problems sequentially for erroneous outputs

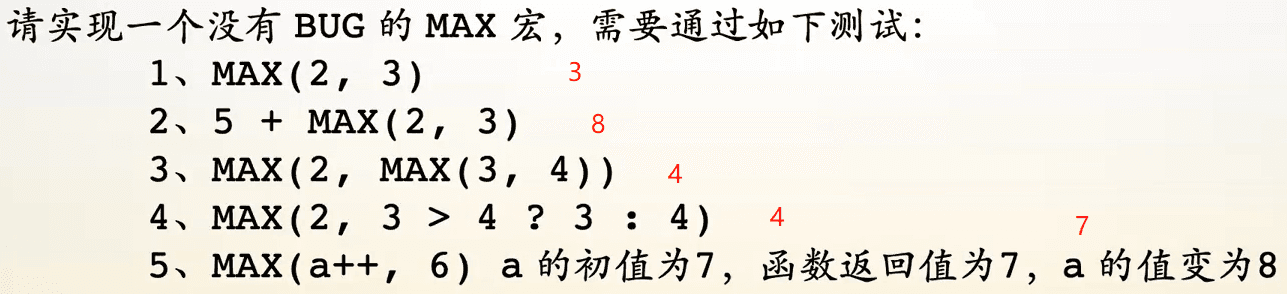

• ① Correct output as shown

• ② First write with BUG, and implement friendly output display

#define MAX(a, b) a > b ? a : b
#define P(func) { \
    printf("%s = %d\n", #func, func); \
}

• Line2-4: Friendly output display
  • #func directly outputs its string representation
  • Not adding # means calling its value
• ③ Find and solve problems sequentially for erroneous outputs

  • (The order of solving BUGs is also important, but here the order of BUGs is good)

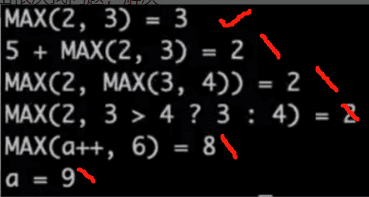

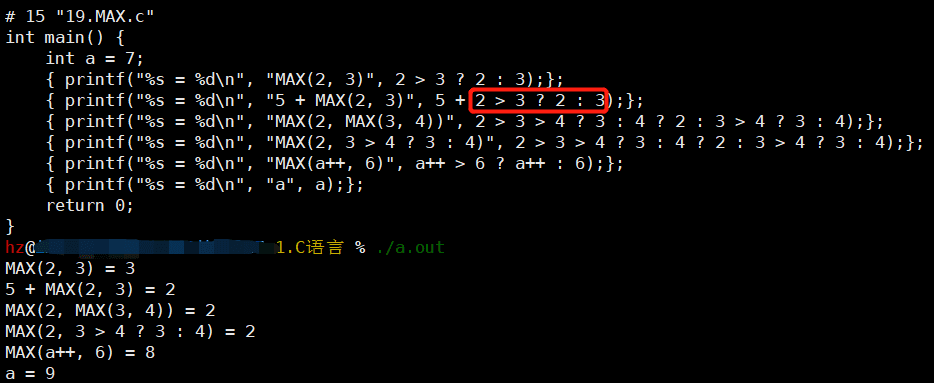

  • At this point, check the erroneous situation

  •

  • Errors caused by macros can be seen in the preprocessed file

    • gcc -E *.c outputs the code after macro replacement

  • First error correction

    •
    • Solution: You can use parentheses to increase the precedence in the red box

#define MAX(a, b) (a > b ? a : b)

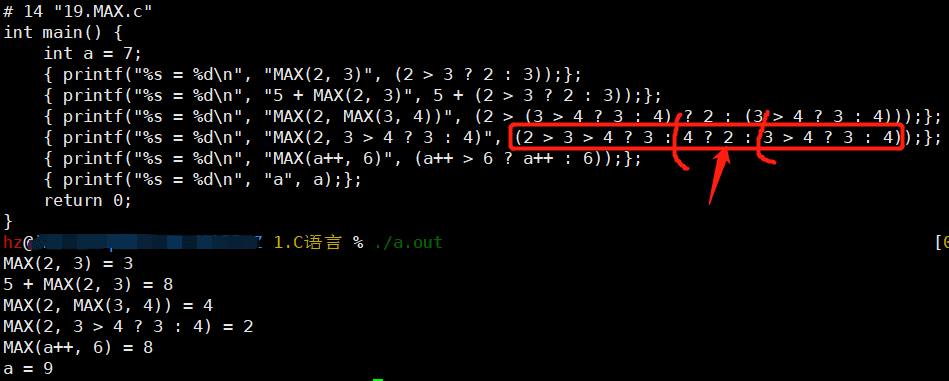

• • Second error correction
    •

    • The fourth result is 2, as shown in the above image

    • Note the conditional operator '?:'

      • Its precedence is very low: lower than '>'

      • When there are multiple '?:', its associativity is from right to left

      •

    • Solution: Use parentheses for each variable to increase precedence

#define MAX(a, b) ((a) > (b) ? (a) : (b))

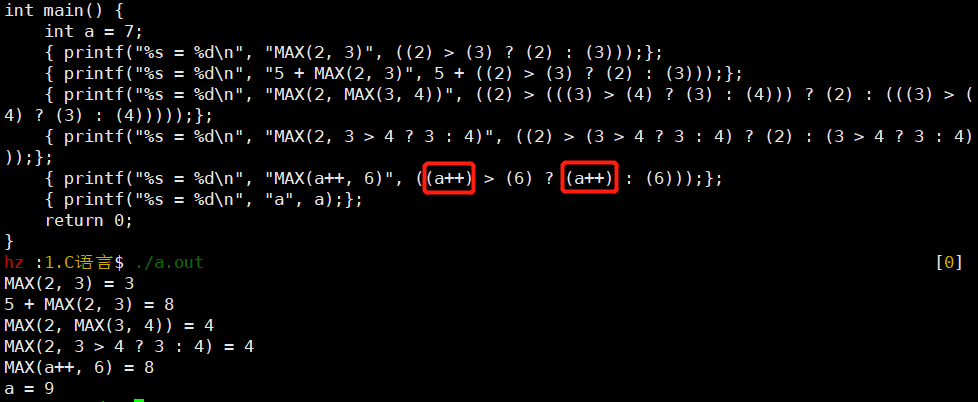

• • Third error correction
    •

    • a++ ran twice

      • It should first take a for comparison, then perform a+1

    • Solution: Assign the pre-increment value to a variable; define it as an expression generated by a code segment

#define MAX(a, b) ({\
    __typeof(a) _a = (a);\
    __typeof(b) _b = (b);\
    _a > _b ? _a : _b;\
})

• Does __typeof(a++) execute?

  • When used in an expression, it does not execute, it just retrieves its type

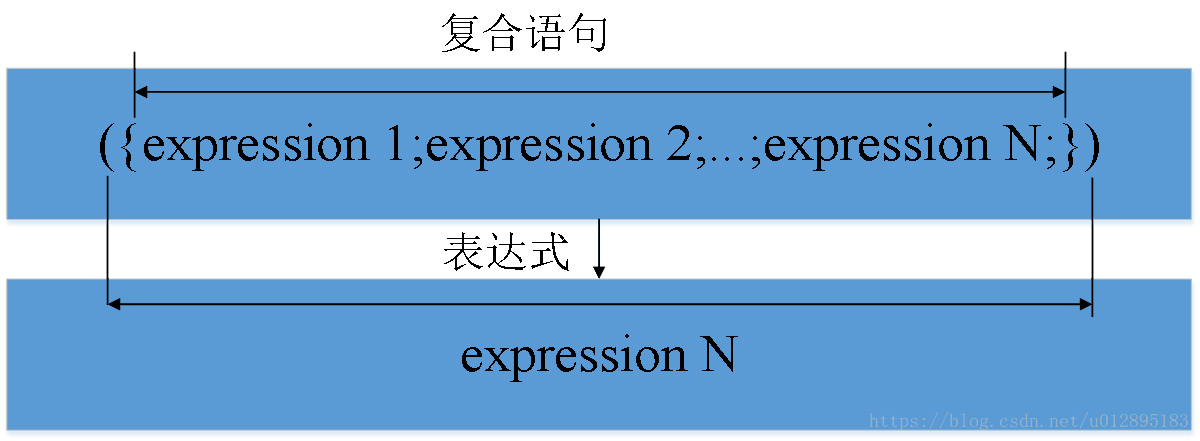

• ({}) expression

  • The value is the last expression's value in parentheses, and the data type is that of the last expression

  • Refer to C language's use of parentheses and braces in conjunction with && compound statements-CSDN

  •

  • Removing {} or () will not work!

    • () can only contain comma expressions
      • The comma expression takes the value of the last expression
    • {} is a code segment, which has no return value
      • If directly defined as a macro function
      • Directly printf output would lose the essence of MAX returning the maximum value
      • ❓ Use return to return value
        • Needs declaration
        • But using an expression to represent the return value is smarter

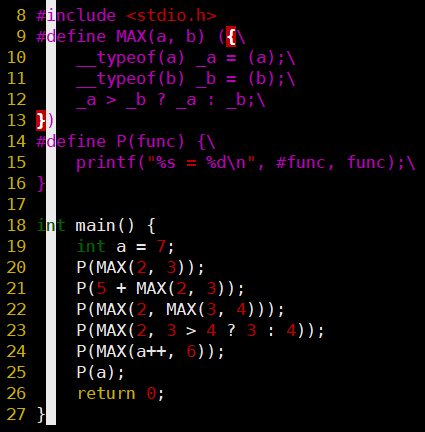

• Final Version Code

•

​ Result is all correct!

Implement LOG macro printing#

•
•

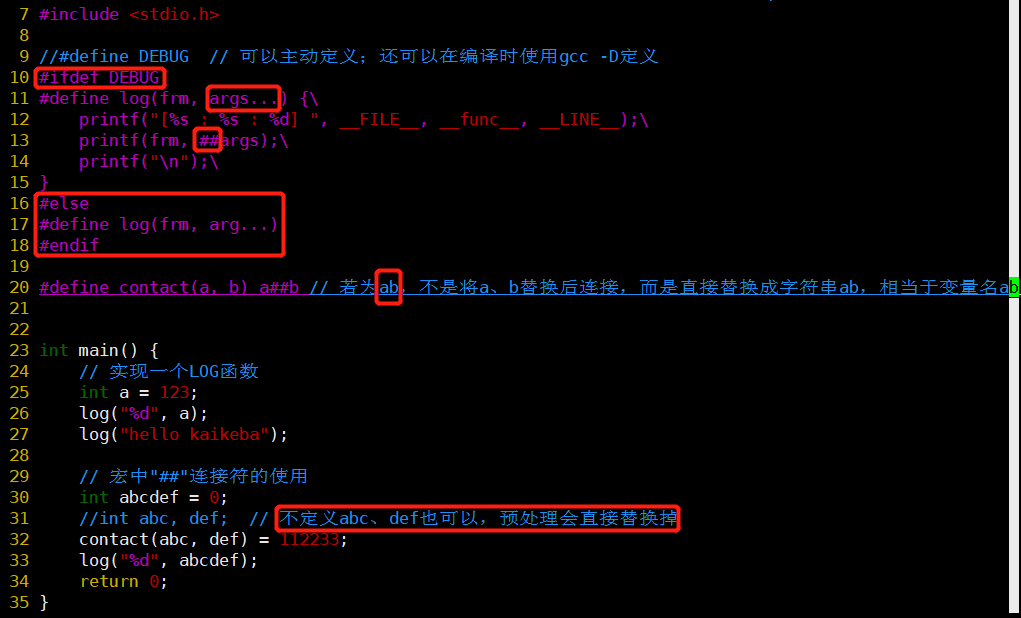

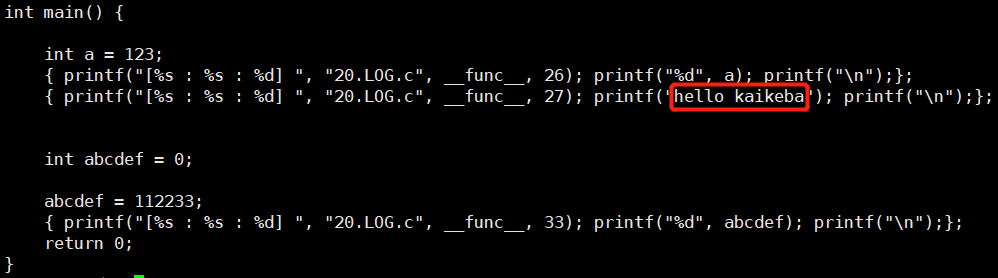

• Code

  •

  • When delivering work, to omit log information, conditional compilation can be used

    • Use "gcc -DDEBUG" during compilation to pass in the DEBUG macro definition
    • Define an empty macro replacement after #else

  • Variadic Macros

    • Variadic '...' just needs a name. eg. args...

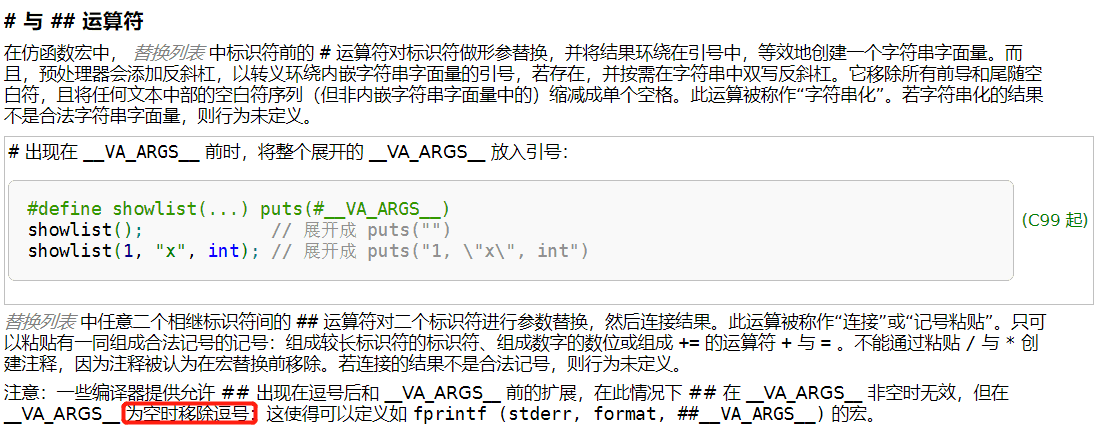

  • Usage of "#" and "##" in macros

    • "#" : Take string
    • "##" : Concatenate

      • Solve the case where the log macro input is an empty character: If empty, the comma after frm will be automatically removed, refer to the precompiled result 👇

      •

      • Refer to Text Replacement Macros-cppreference

      •

      • The difference between ab and a##b

        • ab will not substitute a and b before concatenation
        • The parameters corresponding to a and b that need to be concatenated can be undefined
          • The preprocessor will concatenate these undefined variable names, and the defined variable name after concatenation is sufficient

Highlights Notes#

Code Demonstration#

Prime Sieve#

Code

•

• Dual logic, control indentation

  • if continue

• The front part of the prime array can simultaneously count and store (used to mark overall)

  • Initially, prime[0] and prime[1] are not used, left idle
  • There will be no overtaking issue: even numbers are definitely composite, and prime numbers appear at least every other time

• The initial condition of the second for loop can be optimized

  • Initial Condition: i * 2 → i * i
  • Time efficiency: O(Nlogn)→O(Nlognlogn)
  • Because composite numbers smaller than i * i must have been marked by numbers smaller than i
    • This reduces the number of duplicate markings in the earlier part, but not completely
    • To completely avoid duplicate marking, a linear sieve must be used
  • Danger point: i * i grows exponentially, more likely to overflow the maximum value that int can store
    • Can a judgment be added in advance? But it may lead to greater time consumption
    • Change to a data type with a higher upper limit to store i * i

Arrays#

Code

•

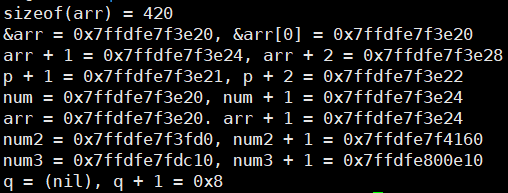

• Output

  •
  • Details 👇

Declaration and Initialization#

• Programming Tip: Open 5 more positions to avoid overflow, which can reduce the bug rate

#define max_n 100
int arr[max_n + 5];

• The variable space in functions is all defined in the stack area
  • The stack area can be understood as a badminton tube, last in first out
  • Default stack size: 8MB≈8000000Byte (bytes)
• Arrays declared inside functions may be uninitialized and need manual initialization
  • = {0};
  • scanf input

for (int i = 0; i < max_n; i++) {
scanf("%d",arr + i);
}

• • arr + i is equivalent to &arr[i]& cannot be omitted!
• Arrays declared outside functions
  • The system will automatically clear them to 0, similar to the = {0} operation
  • The size that can be allocated is limited by the computer's memory, essentially unlimited
• Arrays defined by malloc, calloc, realloc are in the heap area, even if defined inside functions

Space Occupation and Address#

• The control character corresponding to sizeof() is %lu, unsigned long
• The array name arr represents the address of the first element of the array, which is &arr[0]

printf("%p %p\n", arr, &arr[0]); // Address values are the same

• Address + 1 offsets how many bytes depend on the element byte size represented by the address

Parameter Passing#

• Condition: The external and function parameter representations must be consistent
  • One-dimensional array: int arr[100];
    • void func(int *num)
  • Two-dimensional array: int arr2[100][100];
    • void func2(int **num) will warn
      • num + 1 and arr + 1 have inconsistent representations
      • num is a pointer to an int pointer
      • The address difference between num and num + 1 is the size of one pointer, which is 8 bytes in a 64-bit operating system
      • The address difference between arr and arr + 1 is the size of one one-dimensional array, which is 4 * 100 bytes
    • void func2(int (*num)[100]) is possible
  • Three-dimensional array: int arr3[100][100][32]
    • void func3(int (*num)[100][32]) is possible
    • (*num)[100][32] can be written as num[][100][32]
      • (*num) and num[] have the same representation, but they are essentially different
• ❓ Is q pointing to nil? That is 0x0

Additional Knowledge Points#

• An array can represent three types of information
• int arr[100]; // When arr is passed as a parameter to a function, it is the address of the first element of the array
• Is 1 negated to -2? Derive it
  • 1: 0000...001
  • Negation: 1111...110
  • Sign bit remains unchanged, negation plus one gives: 1000...010
  • That is -2
  • Conclusion: The bitwise negation of all positive integers is their own +1's negative number
• For source files containing <math.h>, add -lm during compilation, using gcc *.c -lm
• Coding habit: No more than 80 characters per line
• Control character "%X": Uppercase hexadecimal

Points to Ponder#

• Who is more powerful, functions or macros?
  • Macros can generate functions; aren't macros the father of functions?

Tips#

• Modify the format for automatic completion of header files in vim: add spaces
  • Enter the ~/.vimrc file and modify the corresponding format in SetTitle()
• Explore macro expansion and nesting yourself
• Refer to the reference book chapters 8.1, 8.4, and chapter 15

Course Notes#
